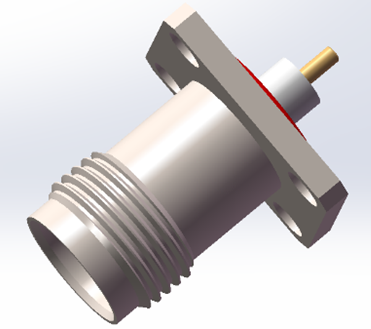

TNC-KFD5
TNC series RF coaxial connector is a threaded variant of the BNC series products, with a frequency of up to 11GHz. It has the characteristics of strong earthquake resistance, high reliability, excellent mechanical and electrical performance, etc., and is widely used in military industry and civil communication systems.

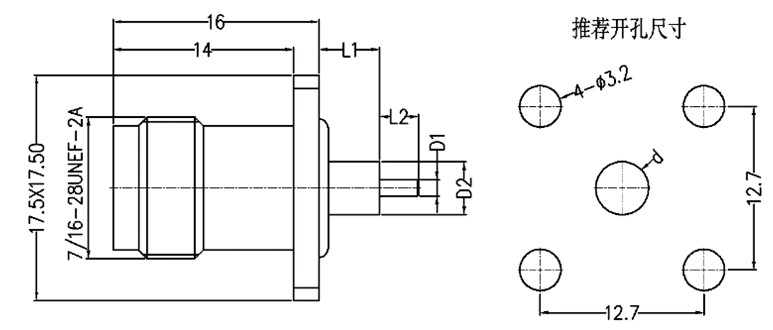

Model | L1 | L2 | D1 | D2 | d |
TNC-KFD5 | 4 | 2 | ∅1.5 | ∅4.9 | ∅5 |
TNC-KFD6 | 4 | 3 | ∅1.27 | ∅4.1 | ∅4.2 |
TNC-KFD7 | 6.5 | 2 | ∅2.18 | ∅7.1 | ∅7.2 |
TNC-KFD8 | 7 | 2 | ∅1.5 | ∅4.9 | ∅5 |
