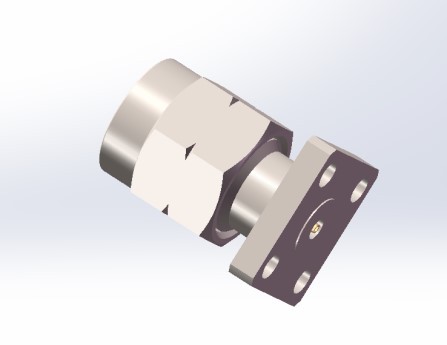

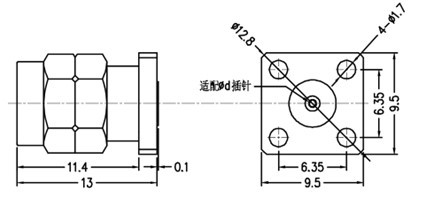

2.92 Connector JFD4-6

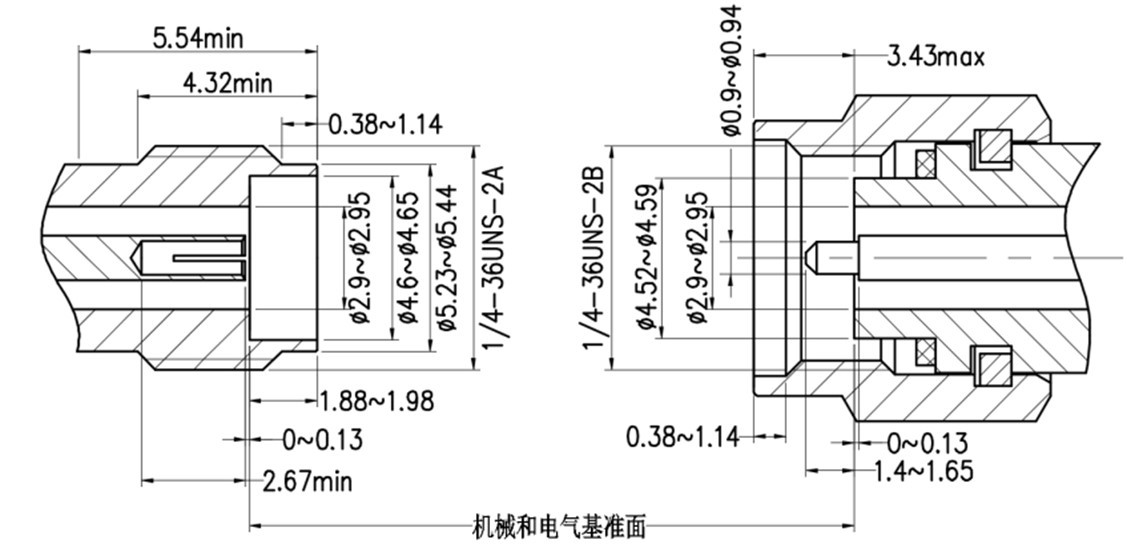

2.92 Connector Series (DC~40GHz)

The 2.92 series millimeter wave coaxial connector uses an air interface, has a frequency of up to 40GHz, and can be connected and interchangeable with SMA series products. It has the advantages of small size, wide frequency bandwidth and high reliability, and is widely used in millimeter wave communication equipment.

Performance Indicators Material/Surface Treatment

Characteristic impedance: 50Ω Housing: Stainless steel SUS303 passivated

brass gold plated

Frequency range: DC~40GHz

Center conductor: beryllium bronze/brass gold plated

Voltage standing wave ratio (VSWR): ≤1.2 Insulation support: PEI

Contact resistance:

Center conductor ≤ 3.0mΩ Outer conductor ≤ 2.0mΩ

Insulation resistance: ≥5000MΩ

Dielectric withstand voltage: 750V

Connector durability: 500 times
