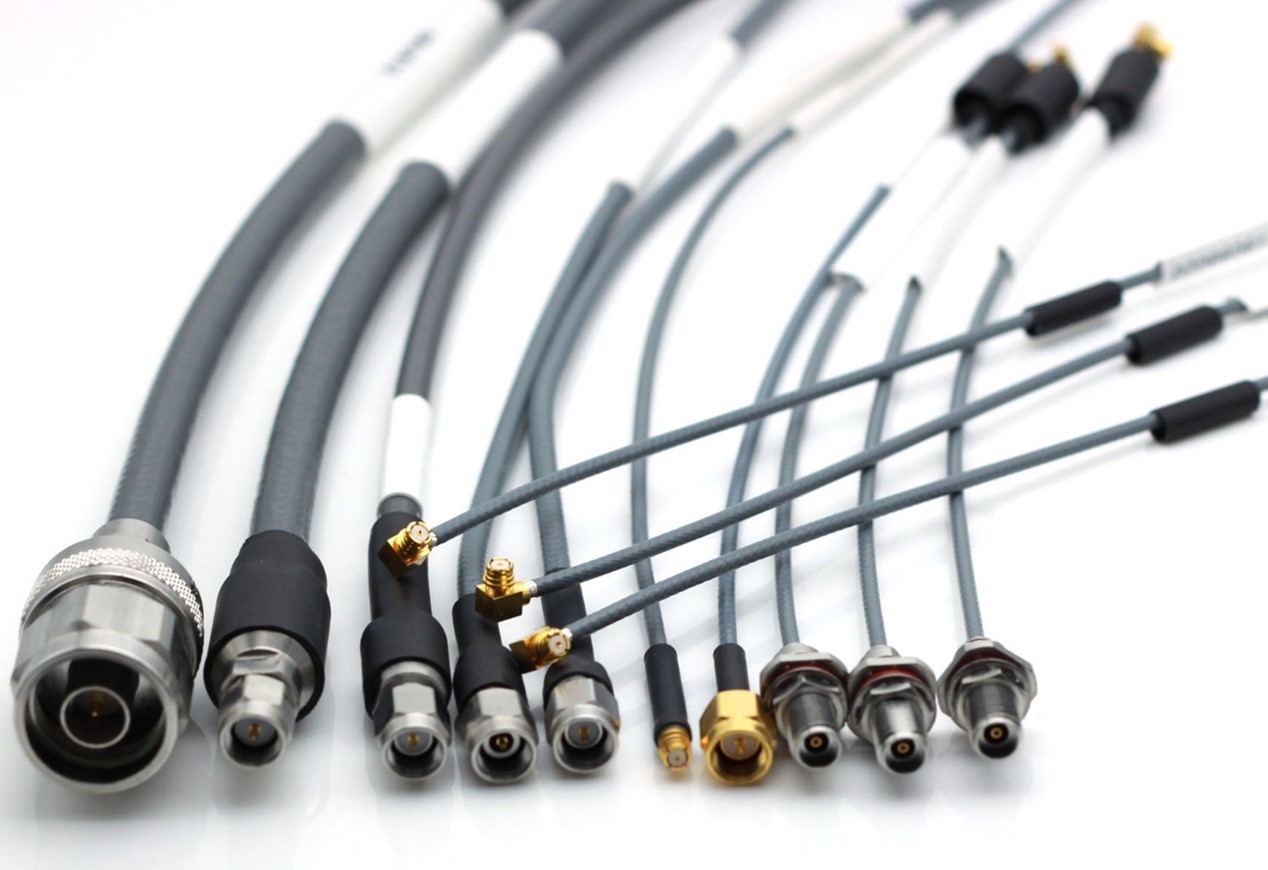

Low Loss Phase Stable Cable Assemblies
Cable assembly features:
1. The inner conductor of the cable is a single silver-plated copper wire, the medium is PTFE, the outer conductor is silver-plated copper foil wrapped shield + braided mesh, and the sheath is FEP;
2. The cable shielding efficiency is ≥90dB, the temperature phase stability is less than 650PPM, and it also has the advantages of low loss, good flexibility, high power, operating frequency up to 67GHz, and light weight;
3. Used in phased array radar, avionics, electronic countermeasures and other demanding applications that require low loss and phase stability.
Main parameters of some cables
Cable Model | Inner ConductorΦ（mm） | Outer Conductor Φ（mm） | Attenuation(dB/m) | |||||
10GHz | 18GHz | 26.5GHz | 40GHz | 50GHz | 67GHz | |||
T220 | 0.51 | 2.2 | 2.1 | 2.88 | 3.54 | 4.44 | 5.03 | 5.94 |
T360 | 0.91 | 3.60 | 1.23 | 1.67 | 2.05 | 2.56 | -- | -- |
T480 | 1.4 | 4.8 | 0.78 | 1.07 | 1.32 | -- | -- | -- |
T800 | 2.36 | 8.1 | 0.64 | 0.75 | -- | -- | -- | -- |
Adapting Connectors: SMA, SSMA, 3.5, 2.92, 2.4, 1.85, N, TNC, SMP, SMPM
