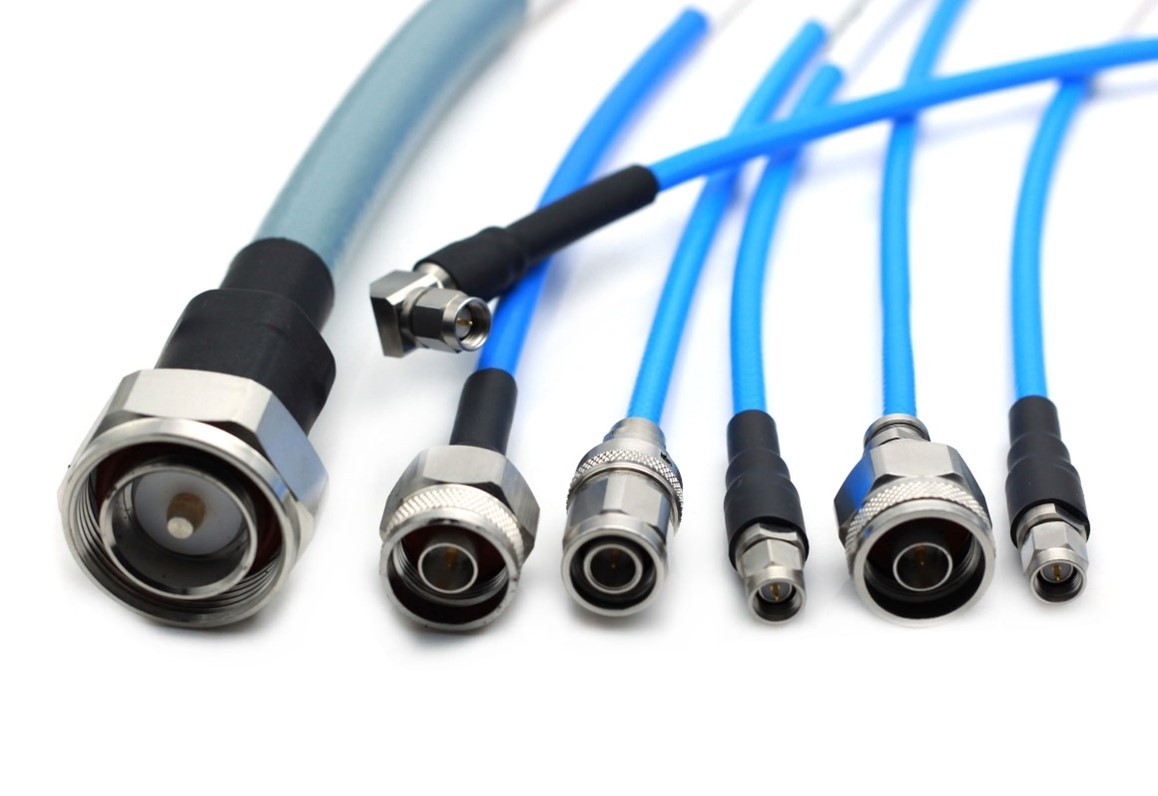

Semi-flexible cable
Semi-flexible cable
1. Inner conductor of the cable: single core silver-plated copper, dielectric solid polytetrafluoroethylene PTFE, outer conductor dipped in tinned copper, with or without sheath.
2. Cable shielding effectiveness ≥100dB, good attenuation stability, no signal crosstalk, low VSWR, high operating frequency band, good mechanical phase, and users can freely bend the shape.
3. Mainly used in antennas, microwave devices, subsystem internal interconnections, delay lines and other places.
Semi-flexible cable
Cable assembly features:
1. Inner conductor of the cable: single core silver-plated copper, dielectric solid polytetrafluoroethylene PTFE, outer conductor dipped in tinned copper, with or without sheath.
2. Cable shielding effectiveness ≥100dB, good attenuation stability, no signal crosstalk, low VSWR, high operating frequency band, good mechanical phase, and users can freely bend the shape.
3. Mainly used in antennas, microwave devices, subsystem internal interconnections, delay lines and other places.
Main parameters of some cables
Cable type Inner conductor Φ (mm) Outer conductor Φ (mm) Attenuation 1GHz 3GHz 5GHz 10GHz 20GHz RG405 0.51 2.2 0.64dB/m 1.26dB/m 1.51dB/m 2.22dB/m 3.29dB/m RG402 0.93 3.58 0.37dB/m 0.72dB/m 0.91dB/m 1.36dB/m 2.1dB/m RG401 1.63 6.35 0.22dB/m 0.45dB/m 0.57dB/m 0.89dB/m --
Adapting Connectors: SMA, SSMA, 3.5, 2.92, N, TNC, SMP, SMPM, etc.
