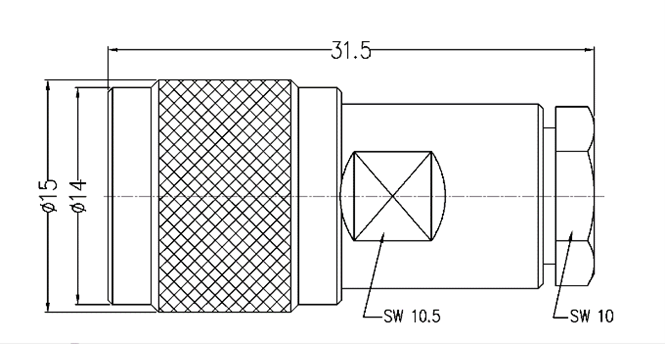

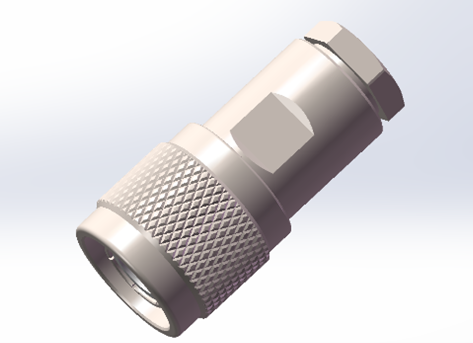

TNC-J5Y
TNC series RF coaxial connector is a threaded variant of the BNC series products, with a frequency of up to 11GHz. It has the characteristics of strong earthquake resistance, high reliability, excellent mechanical and electrical performance, etc., and is widely used in military industry and civil communication systems.
Model | Cable |
TNC-J5Y | SFF-50-3-1 |
TNC-J5A | RG142 |

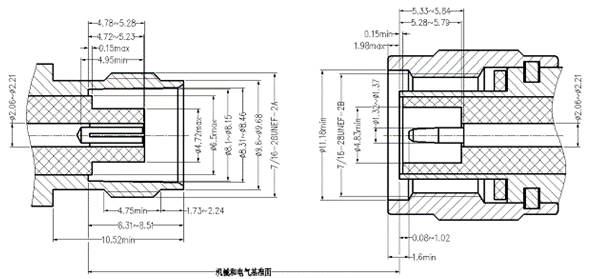

TNC series RF coaxial connector (DC~11GHz)
TNC series RF coaxial connector is a threaded variant of the BNC series products, with a frequency of up to 11GHz. It has the characteristics of strong earthquake resistance, high reliability, excellent mechanical and electrical performance, etc., and is widely used in military industry and civil communication systems.
Performance
Characteristic impedance: 50Ω
Frequency range: DC~11GHz
Voltage standing wave ratio (VSWR):
Straight: ≤1.25@11@Ghz
Bend type: ≤1.4@11GHz
Contact resistance:
Center conductor ≤1.5mΩ, outer conductor ≤0.2mΩ
Insulation resistance: ≥5000MΩ
Dielectric withstand voltage: 1500V
Connector durability: 500 times
