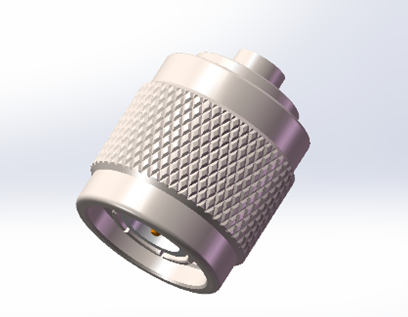

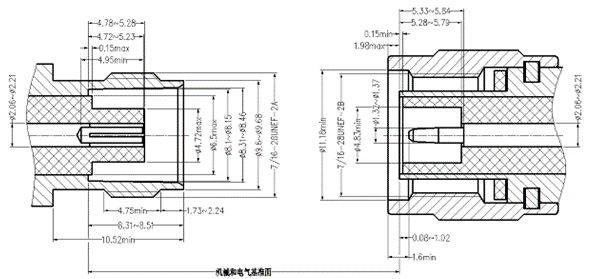

TNC-JB

TNC series RF coaxial connector (DC~11GHz)

The TNC series RF coaxial connector is a threaded variant of the BNC series products, with a frequency of up to 11GHz. It has the characteristics of strong earthquake resistance, high reliability, excellent mechanical and electrical performance, etc., and is widely used in military industry and civil communication systems.

Performance

Characteristic impedance: 50Ω

Frequency range: DC~11GHz

Voltage standing wave ratio (VSWR):

Straight: ≤1.25@11@Ghz

Bend type: ≤1.4@11GHz

Contact resistance:

Center conductor ≤1.5mΩ, outer conductor ≤0.2mΩ

Insulation resistance: ≥5000MΩ

Dielectric withstand voltage: 1500V

Connector durability: 500 times
