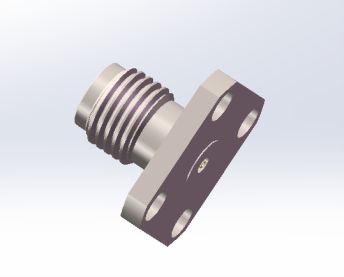

2.4mm connector KFD
P/N 2.4-KFD-TX003
The 2.4mm series is a high-precision millimeter wave connector with a frequency of up to 50GHz.

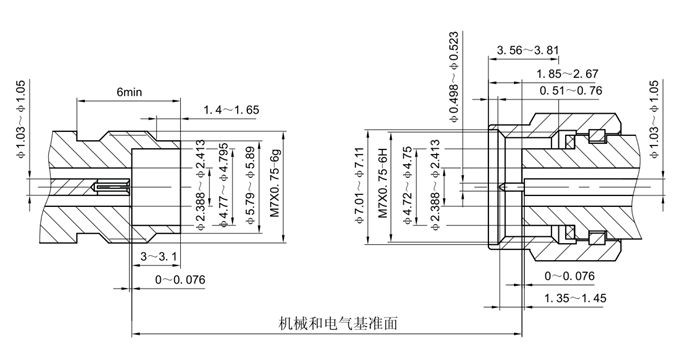

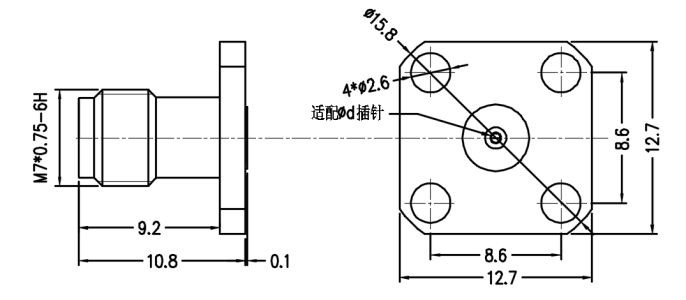

Model | Jack diameter d |
2.4-KFD1 | 0.23 |
2.4-KFD2 | 0.30 |
2.4-KFD3 | 0.38 |
2.4-KFD4 | 0.51 |
The 2.4mm series is a high-precision millimeter wave connector with a frequency of up to 50GHz.
It is a common product among millimeter wave Connectors. Compared with the 2.92mm connector, it is stronger and more reliable, can be matched with the 1.85mm connector, and is widely used in the field of modern precision measurement and testing and various millimeter wave communication equipment.
Performance Indicators Material/Surface Treatment
Characteristic impedance: 50Ω Housing: Stainless steel SUS303 passivated
Frequency range: DC~50GHz Center conductor: beryllium bronze gold-plated
Voltage standing wave ratio (VSWR): Insulator: PTFE&PEI
≤1.2@40G/≤1.3@50G
Contact resistance:
Center conductor ≤ 4.0mΩ Outer conductor ≤ 2.5mΩ
Insulation resistance: ≥5000MΩ
Dielectric withstand voltage: 500V
Connector durability: 500 times
Temperature range: -55~+165℃
