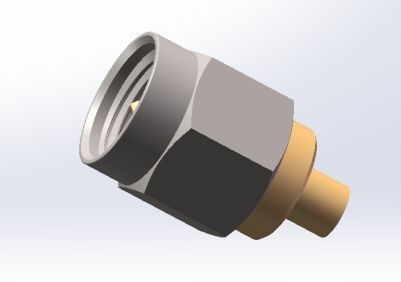

2.4mm millimeter wave connector

The 2.4mm series is a high-precision millimeter wave connector with a frequency of up to 50GHz.

It is a common product among millimeter wave Connectors. Compared with the 2.92mm connector, it is stronger and more reliable, can be matched with the 1.85mm connector, and is widely used in the field of modern precision measurement and testing and various millimeter wave communication equipment.

Performance Indicators Material/Surface Treatment

Characteristic impedance: 50Ω

Housing: Stainless steel SUS303 passivated

Frequency range: DC~50GHz

Center conductor: beryllium bronze gold-plated

Voltage standing wave ratio (VSWR): Insulator: PTFE&PEI

≤1.2@40G/≤1.3@50G

Contact resistance:

Center conductor ≤ 4.0mΩ

Outer conductor ≤ 2.5mΩ

Insulation resistance: ≥5000MΩ

Dielectric withstand voltage: 500V

Connector durability: 500 times

Temperature range: -55~+165℃
